Ease Medical Apparatus And Instruments Ease Medical Apparatus And Instruments

Titanium Alloy Elastic Interlocking Nail Orthopedic Implant Competitive Price Titanium Elastic Nail

Product Description

Product Banner
Products Description
Product Overview
Product name Model Material Specification Code
Elastic Nail Intramedullary Nail SNXS Titanium Alloy 2.5×440 15902940
Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary NailSGM-IIK9.0×170×130°Titanium Alloy15649170
Proximal Femoral Nail Antirotation Intramedullary NailSGM-IIK9.0×200×130°Titanium Alloy15649200
Proximal Femoral Nail Antirotation Intramedullary NailSGM-IIK9.0×240×130°Titanium Alloy15649240
Proximal Femoral Nail Antirotation End CapSGM-IIK10×15Titanium Alloy15601115
Proximal Femoral Nail Antirotation End CapSGM-IIK10×20Titanium Alloy15601120
Proximal Femoral Nail Antirotation BladeSGM-IIK10.5×70Titanium Alloy15600570
Proximal Femoral Nail Antirotation BladeSGM-IIK10.5×80Titanium Alloy15600580
Proximal Femoral Nail Antirotation φ4.9 locking screwSGM-IIK4.9×30--72Titanium Alloy15604930
Femoral Nail locking screw ISGG-IIIK6.5×75Titanium Alloy15246575
Femoral Nail Intramedullary NailSGG-IIIK9.0-13.0Titanium Alloy15249340
Humeral nail Intramedullary NailSHG-IK8Titanium Alloy15728160
Our Advantages
Advantage 1
Advantage 2

1. 1.0m radian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.

Screw design

2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

Nail types

3. Versatile Specifications: Short nail: diameter of 8.0/9.5mm, length of 160mm. Long nail: diameter of 7.0/8.5mm, length of 180-315mm. All nails have left and right type, titanium alloy material. Simple operation and minimally invasive implantation.

Details Images
Proximal fixation
Proximal fixation: Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration.
Distal fixation: Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels. Two anterior and posterior locking holes facilitate manual operation, minimizing rotation and displacement of distal fracture.
Distal fixation

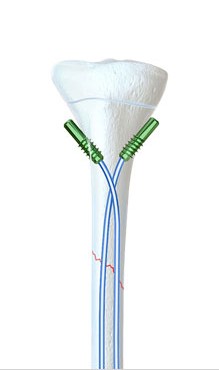

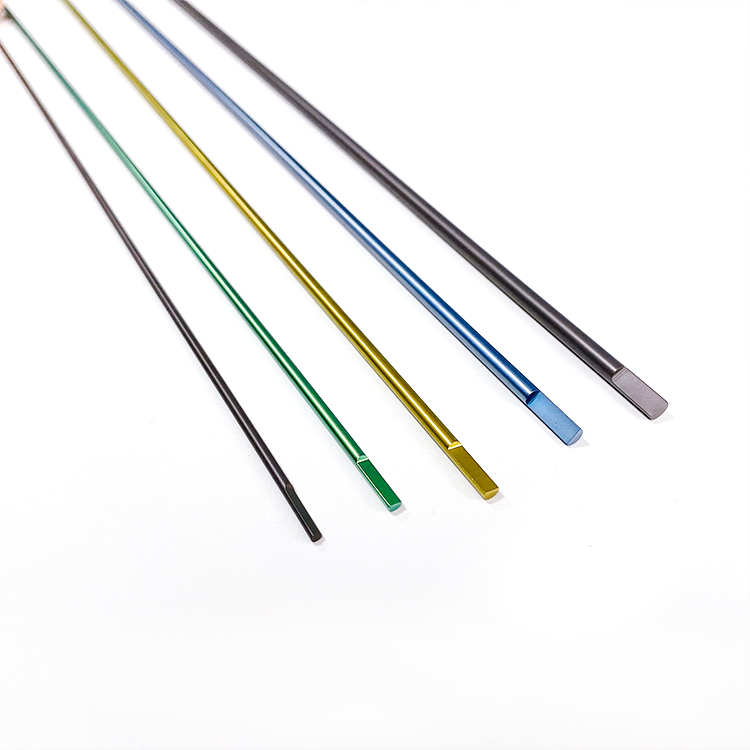

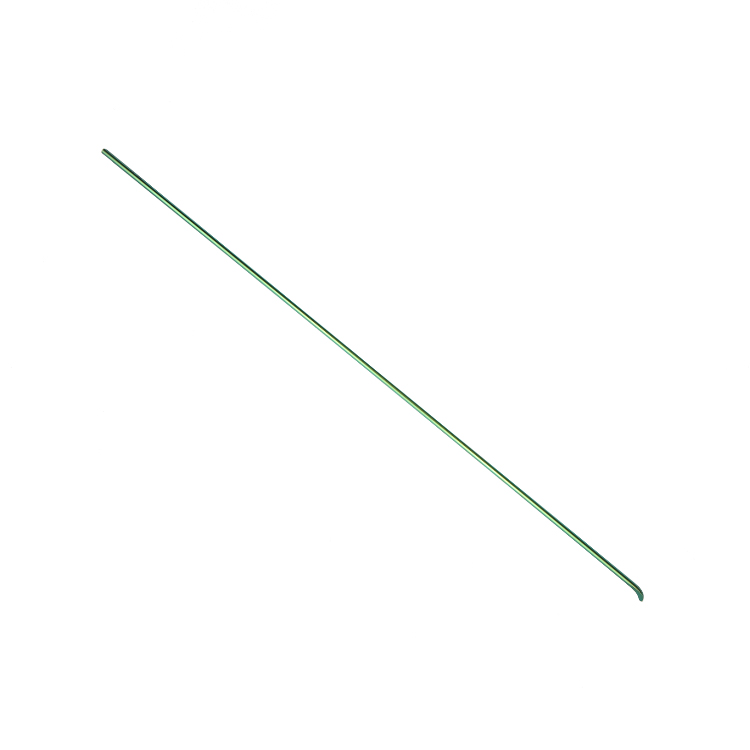

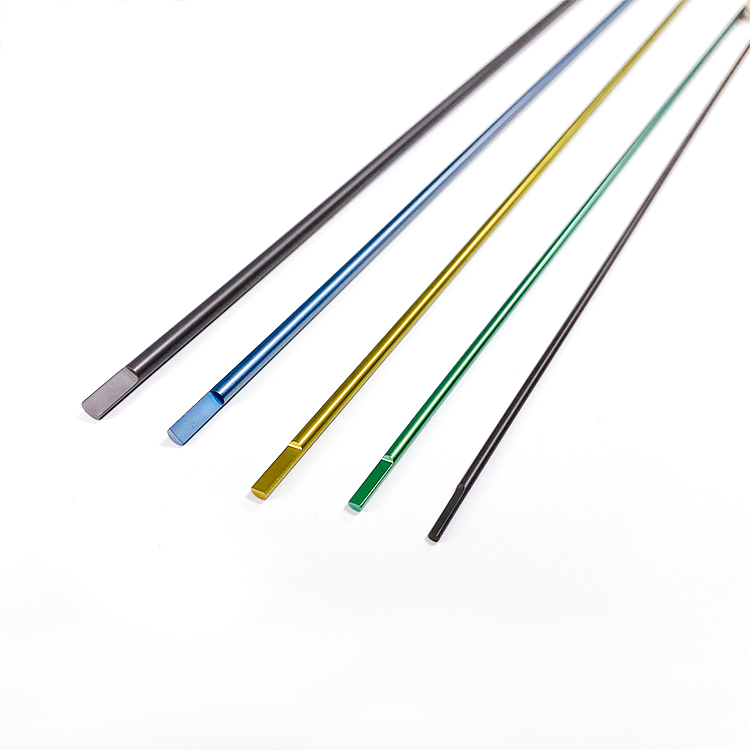

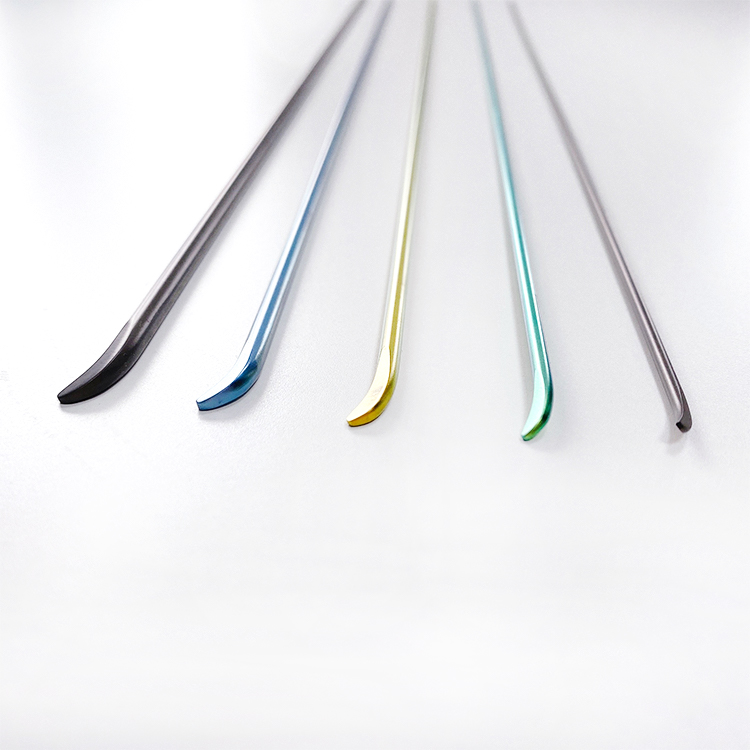

Elastic Nail
Elastic Nail: Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm/ 6-8 years old; 3.5mm/ 9-11 years old; 4.0mm/ 12-14 years old.
Compression: Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed during operation.
Compression
TFNA System
TFNA System: Compared with traditional designs with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity provides superior anatomical fit.
Certifications
Company Profile
Facility 1
Facility 2
A leading orthopedic medical device R & D, manufacturing and operation enterprise. Focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. The sales network covers the whole country and international markets. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, we have won the affirmation of many partners. The company has a number of senior R & D technical teams with many years of experience, making unique achievements in the field of orthopedic medical devices.
Workshop 1
Workshop 2
Why Choose Us
Why Choose Us
Frequently Asked Questions
What shipping modes do you offer and what are the charges?
Normally we send through couriers like DHL, FEDEX, UPS, TNT, etc., or post upon request from clients. Charges depend on weight and destination.
Do you have ISO9001, ISO 13485, and CE approvals?
Yes, our manufacturing processes and products are certified according to international standards including ISO and CE requirements.
What is the minimum order quantity (MOQ)? Do you provide free samples?
We expect minimum orders to be at least US$500. However, we understand customers need to place smaller sample orders initially. We can offer free samples, but customers cover the freight cost.
Can I buy products similar to your catalogue but not shown?
Yes, you can. Simply send us pictures or samples. Please note that custom or non-listed products may require a longer delivery time.
Do you have stock for listed products? What are your payment terms?
Generally, we maintain stock for listed products. Payment for orders < $800 is 100% in advance. For > $800, 30% T/T in advance, balance before shipment. We accept L/C, T/T, Western Union, and PayPal.
What materials are used for the intramedullary nails?
Our intramedullary nails are primarily manufactured using high-quality Titanium Alloy, ensuring biocompatibility and strength for orthopedic applications.
