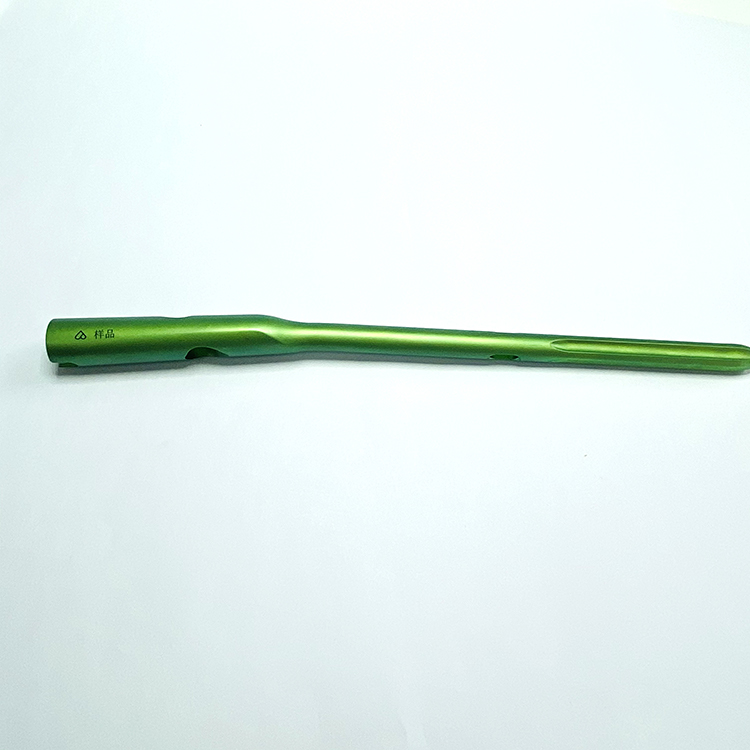

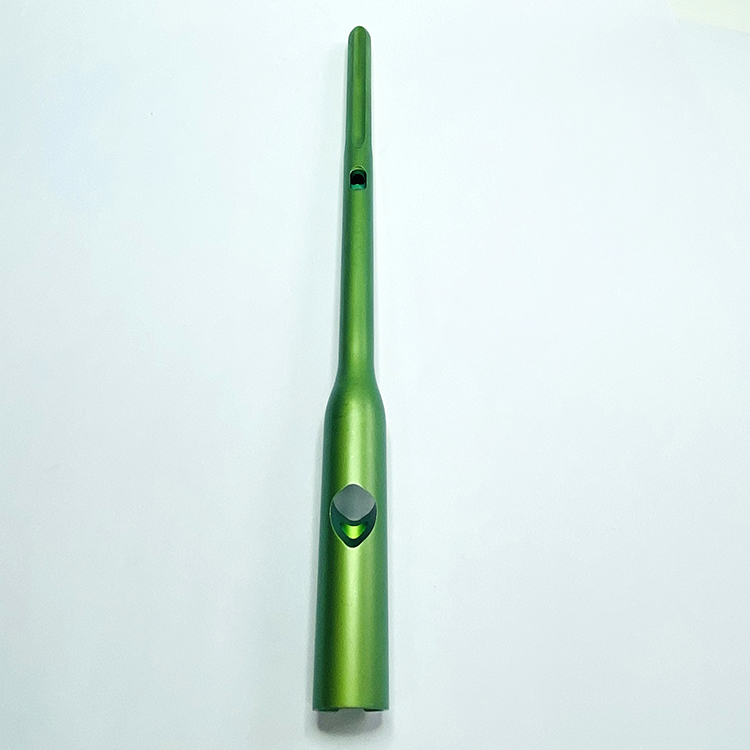

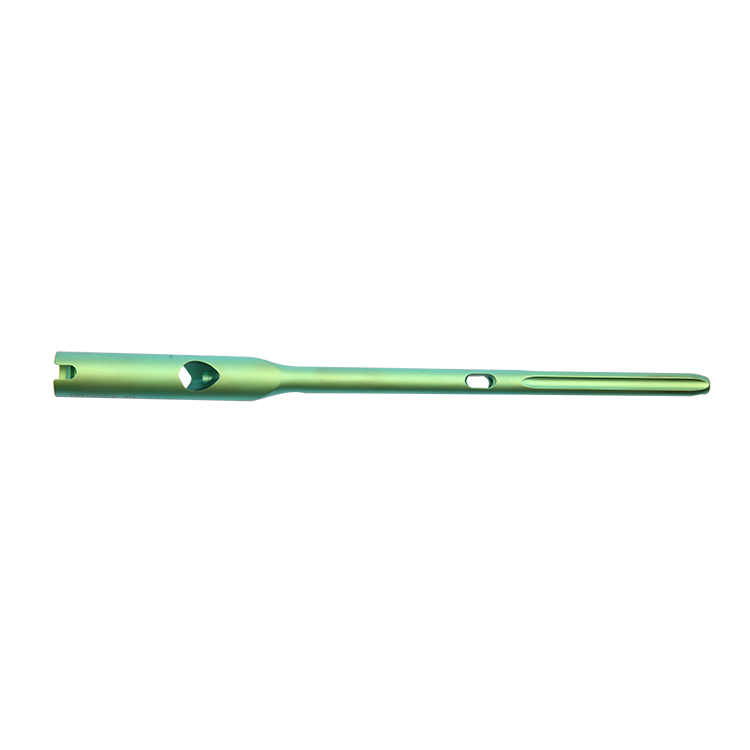

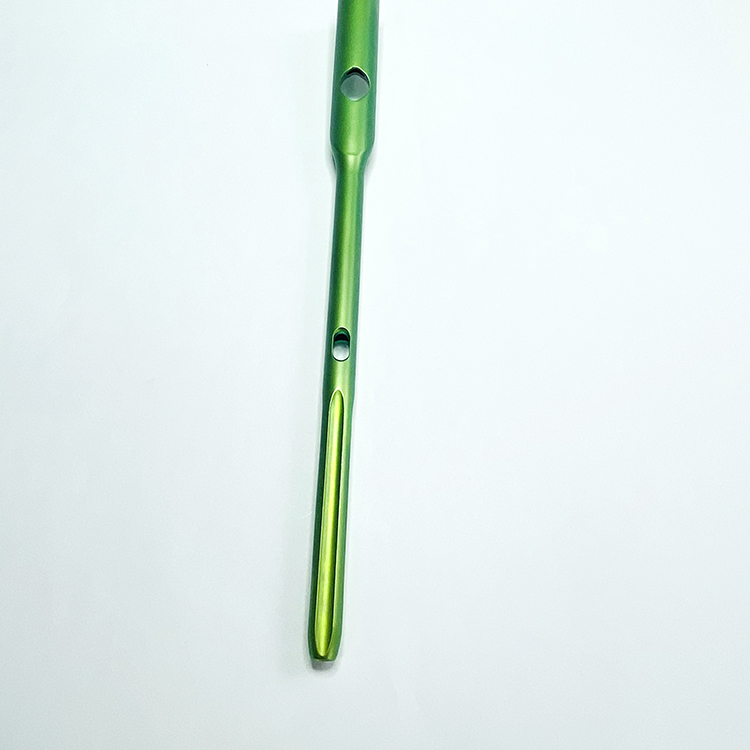

Proximal Femoral Nail Antirotation Intramedullary Nail(non Sterilization)

1 / 4

Proximal Femoral Nail Antirotation Intramedullary Nail(non Sterilization)

Send Inquiry

Product Description

◈ Product Overview

Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.

Product name	Model	Specification	Material	Code
Proximal Femoral Nail Antirotation Intramedullary Nail	SGM-IIK	9.0×170×130°	Titanium Alloy	15649170
Proximal Femoral Nail Antirotation Intramedullary Nail	SGM-IIK	9.0×200×130°	Titanium Alloy	15649200
Proximal Femoral Nail Antirotation Intramedullary Nail	SGM-IIK	9.0×240×130°	Titanium Alloy	15649240
Proximal Femoral Nail Antirotation End Cap	SGM-IIK	10×15	Titanium Alloy	15601115
Proximal Femoral Nail Antirotation End Cap	SGM-IIK	10×20	Titanium Alloy	15601120
Proximal Femoral Nail Antirotation Blade	SGM-IIK	10.5×70	Titanium Alloy	15600570
Proximal Femoral Nail Antirotation Blade	SGM-IIK	10.5×80	Titanium Alloy	15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw	SGM-IIK	4.9×30--72	Titanium Alloy	15604930
Femoral Nail locking screw I	SGG-IIIK	6.5×75	Titanium Alloy	15246575
Femoral Nail Intramedullary Nail	SGG-IIIK	9.0-13.0	Titanium Alloy	15249340
Humeral nail Intramedullary Nail	SHG-IK	8	Titanium Alloy	15728160

★ Our Advantages

1. 1.0m radian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.

2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

3. Specifications: Short nail: diameter of 8.0/ 9.5mm, length of 160mm. Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.

⚙ Technical Details & Images

Proximal Fixation

Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.

Distal Fixation

Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

Elastic Nail

Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.

Compression Mechanism

Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.

TFNA System

Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.

📋 Orthopedic Medical Devices Catalog

🏭 Production Facilities

❓ Frequently Asked Questions

What are the shipping modes and charges?

Normally we send through couriers like DHL, FEDEX, UPS, TNT etc., or post upon request from clients. Shipping charges depend on the weight and destination.

Do you hold international quality certifications?

Yes, our products and processes comply with international standards such as ISO9001, ISO 13485, and CE approvals for orthopedic implants.

What is the minimum order quantity (MOQ)?

We generally expect minimum orders to be at least US$500. However, we understand the need for smaller sample orders initially to test the market. Free samples can be provided, though freight costs are covered by the client.

Can you provide products not shown in the current catalogue?

Yes, we can provide similar products. Please send us pictures or samples of your requirements. Note that custom or non-listed items may require a longer delivery time.

What are the payment terms and stock availability?

We generally maintain stock for listed products produced monthly. For payments <=$800, 100% in advance is required. For >$800, 30% T/T in advance with the balance due before shipment. We accept L/C, T/T, Western Union, and PayPal.

Are the intramedullary nails available in different materials?

Our standard high-quality nails are manufactured from Titanium Alloy, providing excellent biocompatibility and strength-to-weight ratio for orthopedic applications.
